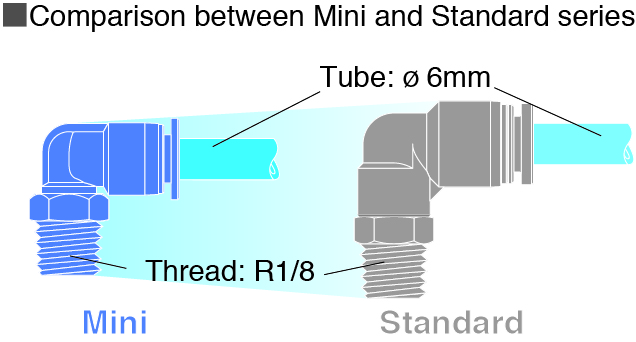

The PISCO Mini-type fitting is 40% smaller than the standard type fitting.
Fluid medium: Air
Max. operating pressure: 1.0MPa
Max. vacuum: -100kPa
Operating temp. range: 0～60℃（No freezing)
Available 9 sizes
mm tube dia: 1.8, 2, 3, 4, 6
Inch tube dia: 1/8″, 5/32″, 3/16″, 1/4
